Products
Cylinders, power packs and presses — standard and built to drawing.
Product range
Everything around the cylinder, made in-house
Fittings, turned parts and ground spools from the same shop that builds our cylinders and power packs.

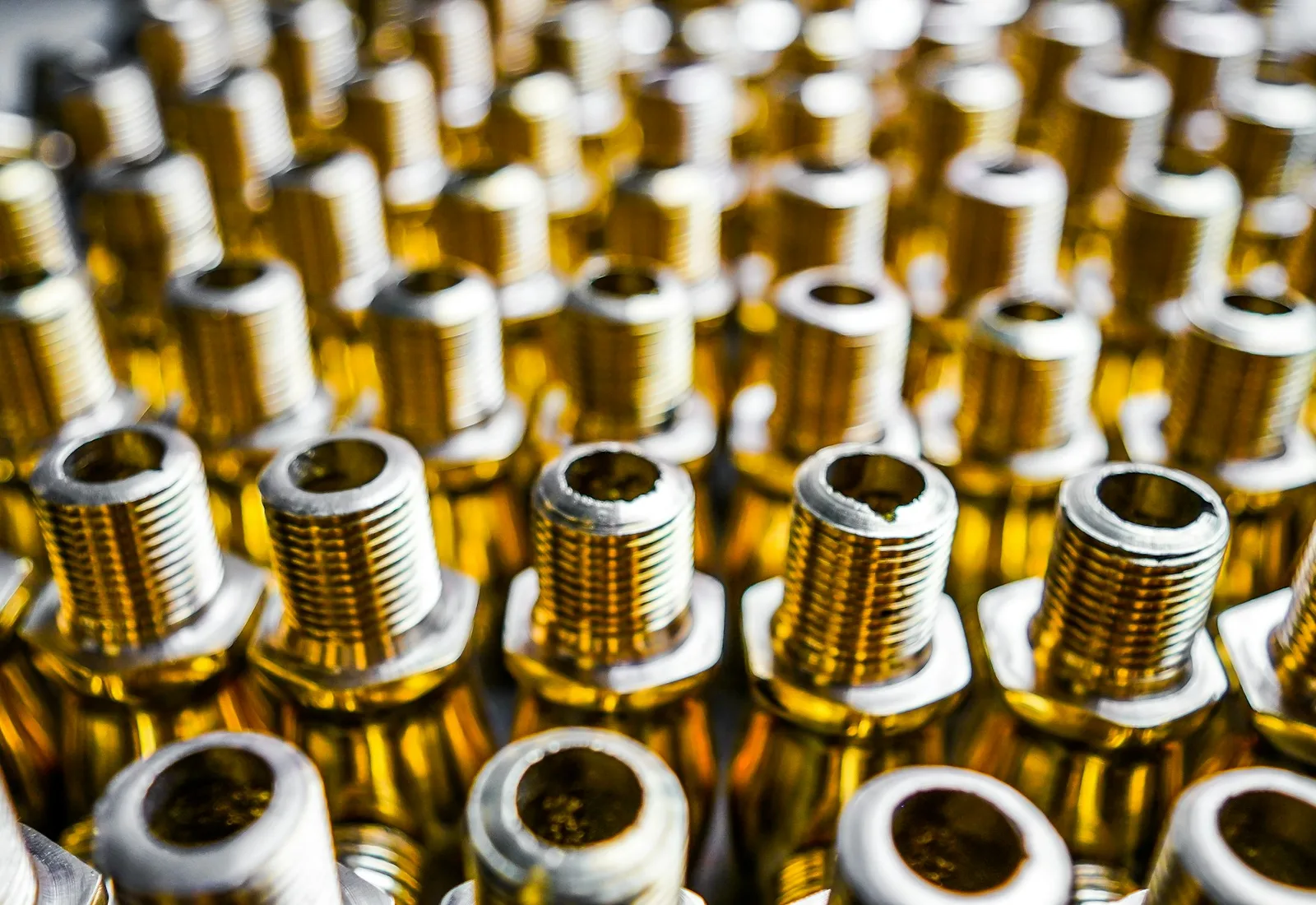

Fittings & adapters
Brass and steel adapters in BSP, NPT and metric threads, machined from bar and pressure-tested in batches before they are packed.
Browse Fittings

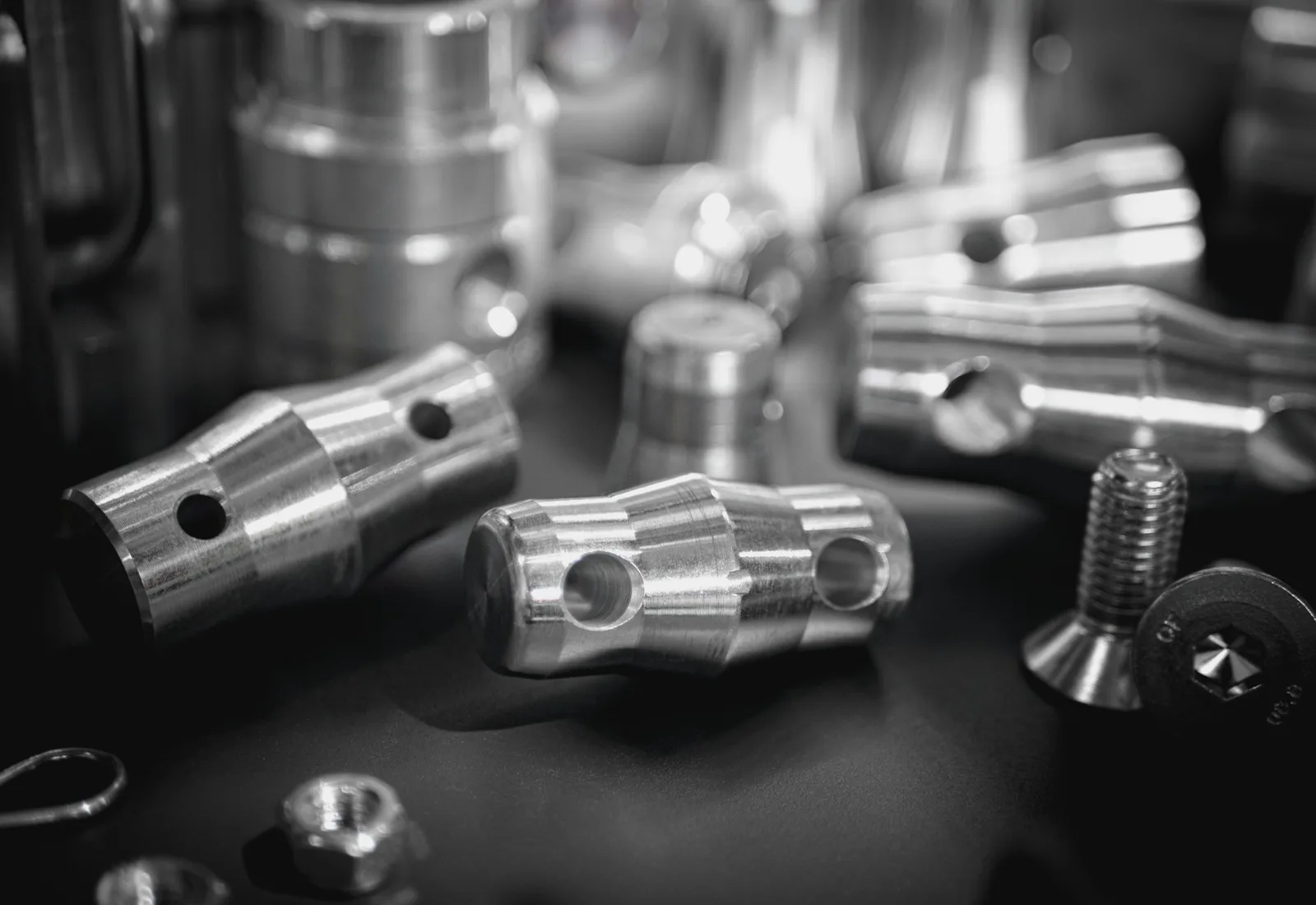

Machined components
Couplers, glands and end caps turned and milled to your drawing, in aluminium, steel or brass, from one-offs to production runs.
Send a Drawing

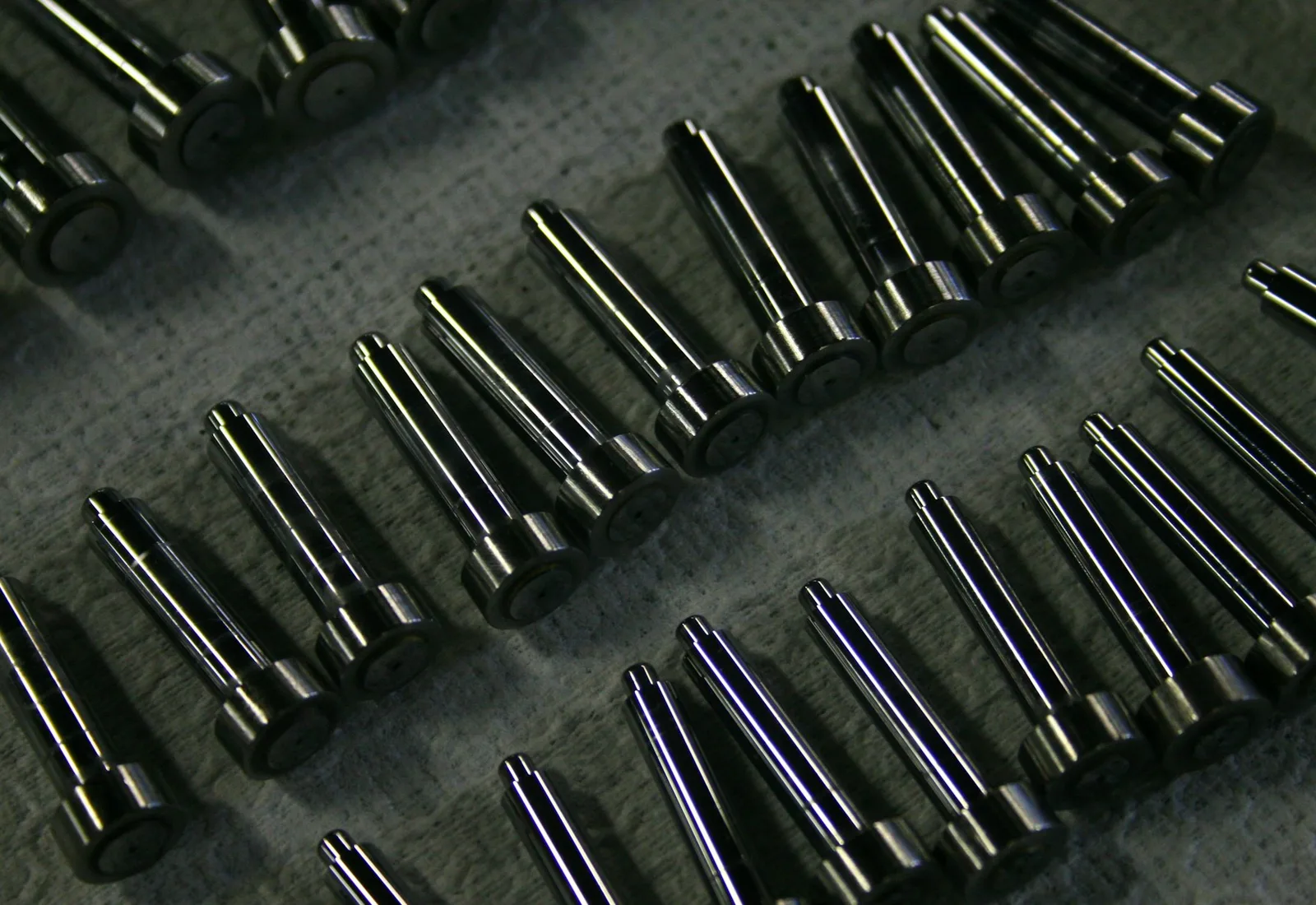

Spools & pins
Valve spools, guide pins and piston rods ground to a fine finish and checked on the bench for straightness and size.
See SpoolsCylinder ranges

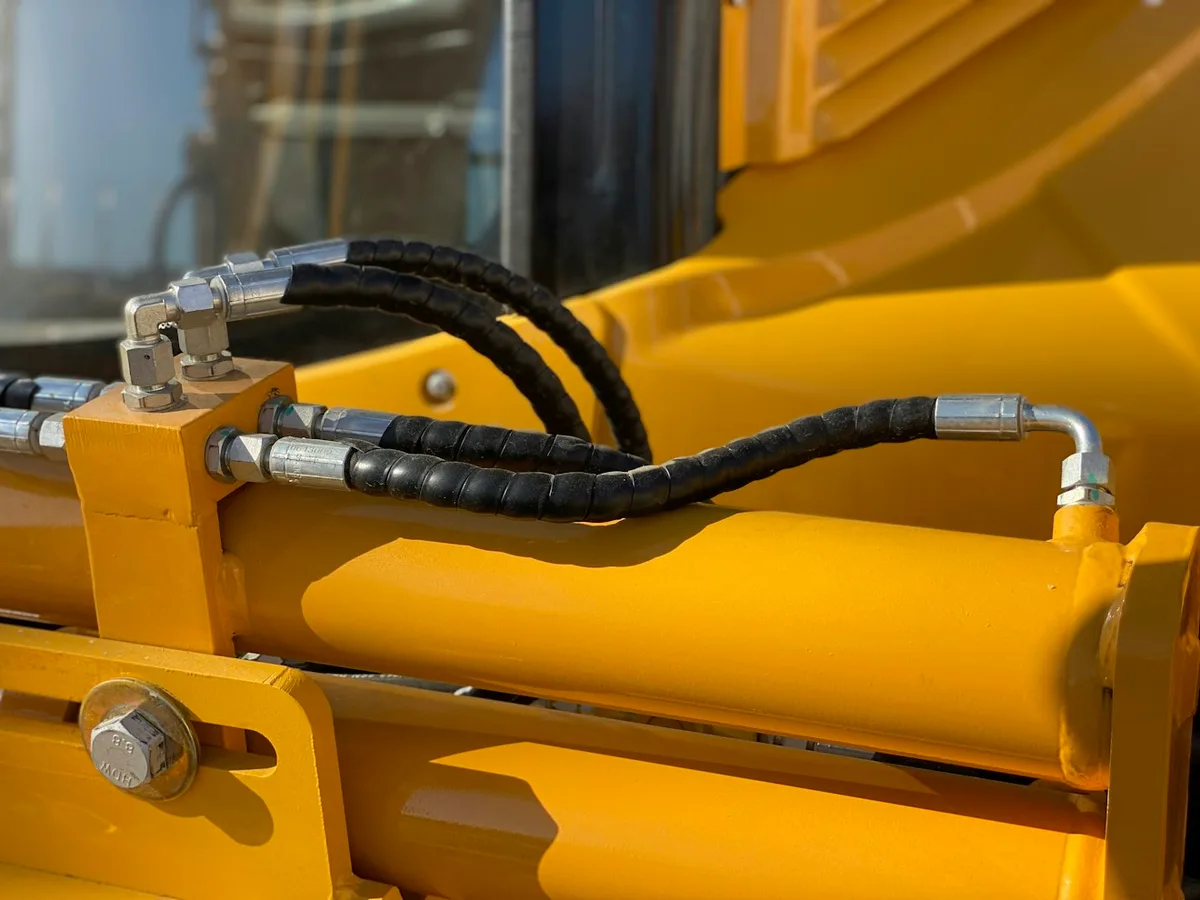

Choose the right cylinder range
Every range is pressure-tested before dispatch and comes with a test certificate.
| Feature | StandardFrom ₹18,500Enquire | Heavy dutyFrom ₹32,000Enquire (recommended) | Custom buildOn requestSend a drawing |
|---|---|---|---|
| Working pressure | 160 bar | 250 bar | Up to 350 bar |
| Bore range | 40–125 mm | 50–200 mm | To your drawing |
| Hard-chrome plated rod | Included | Included | Included |
| Cushioning at both ends | Not included | Included | Included |
| Position sensor option | Not included | Included | Included |
| Special seals for high temperature | Not included | Not included | Included |
How we build
From your drawing to a tested cylinder
One team designs, machines and tests every cylinder under one roof.
Design
Sized to your machine
Our application engineers size the bore, stroke and mounting from your load and speed, then send a drawing for your approval before anything is cut.
- (01)Load and buckling checks on every design
- (02)Drawings in two working days
- (03)Standard mounts or your own interface

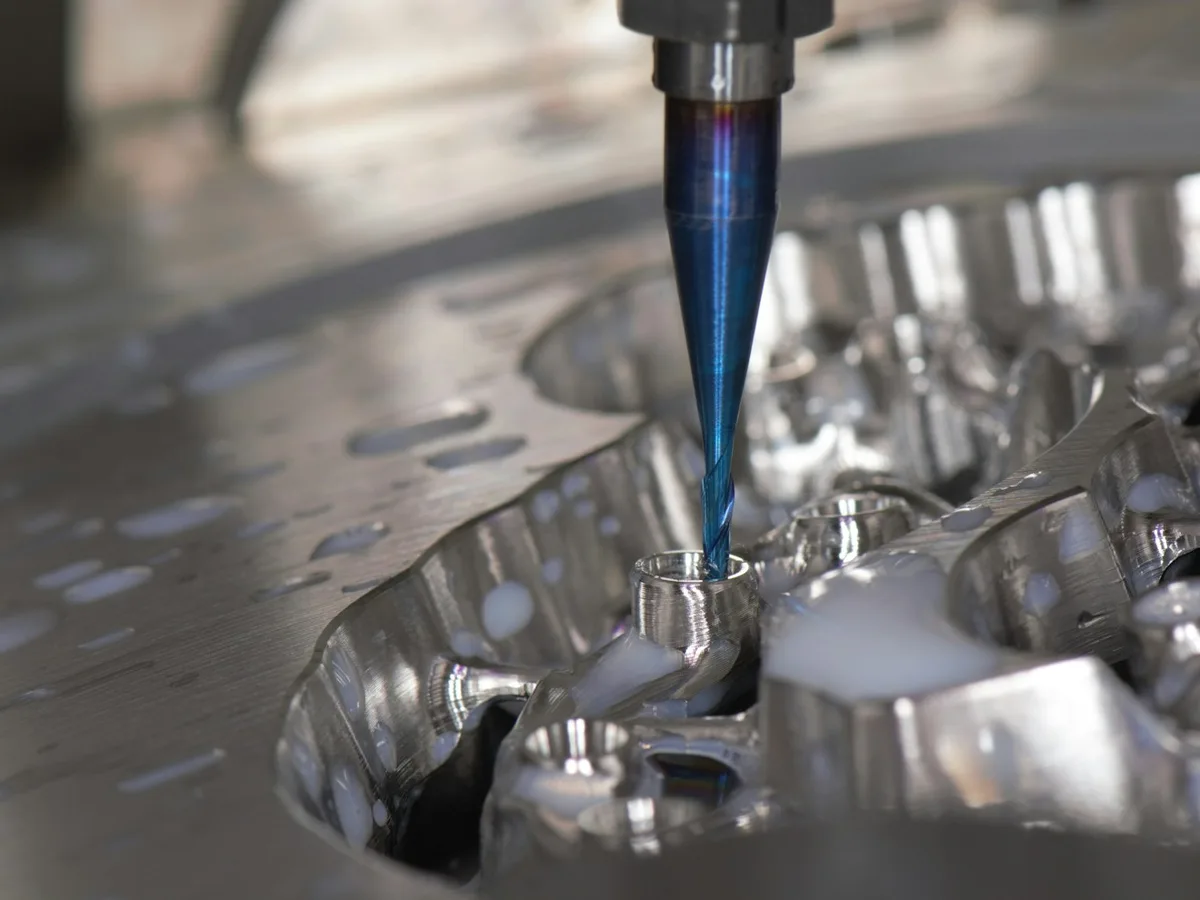

Machining
Machined in-house
Barrels, rods, end caps and pistons are turned and milled on our own CNC lines, so tolerances and lead times stay in our hands.
- (01)Honed barrels and hard-chrome rods
- (02)Threads and ports checked with gauges
- (03)Every batch traceable to its material
Testing
Pressure-tested before dispatch
Every cylinder is held at test pressure on our rig and cycled end to end before it is painted and packed.
- (01)Proof test at one and a half times working pressure
- (02)Leak and cushioning checks
- (03)A test report with every unit
Downloads
Spec sheets, drawings and manuals
Current revisions of every catalogue and data sheet. Need a drawing in another format? Ask your sales engineer.
- PDF · 8.4 MB
Product catalogue 2031 (download)
Cylinders, power packs, presses and fittings in one book.
- PDF · 1.6 MB
Tie-rod cylinder data sheet (download)
Bores 40–200 mm, mounting styles and rod-end options.
- PDF · 2.3 MB
Power pack selection guide (download)
Match flow, pressure and duty cycle to the right unit.
- PDF · 740 KB
Fittings and thread chart (download)
BSP, NPT and metric threads with seal types.
- Online libraryOpen library
3D models (STEP) (opens in a new tab)
Cylinder models for your machine design, on our model portal.
